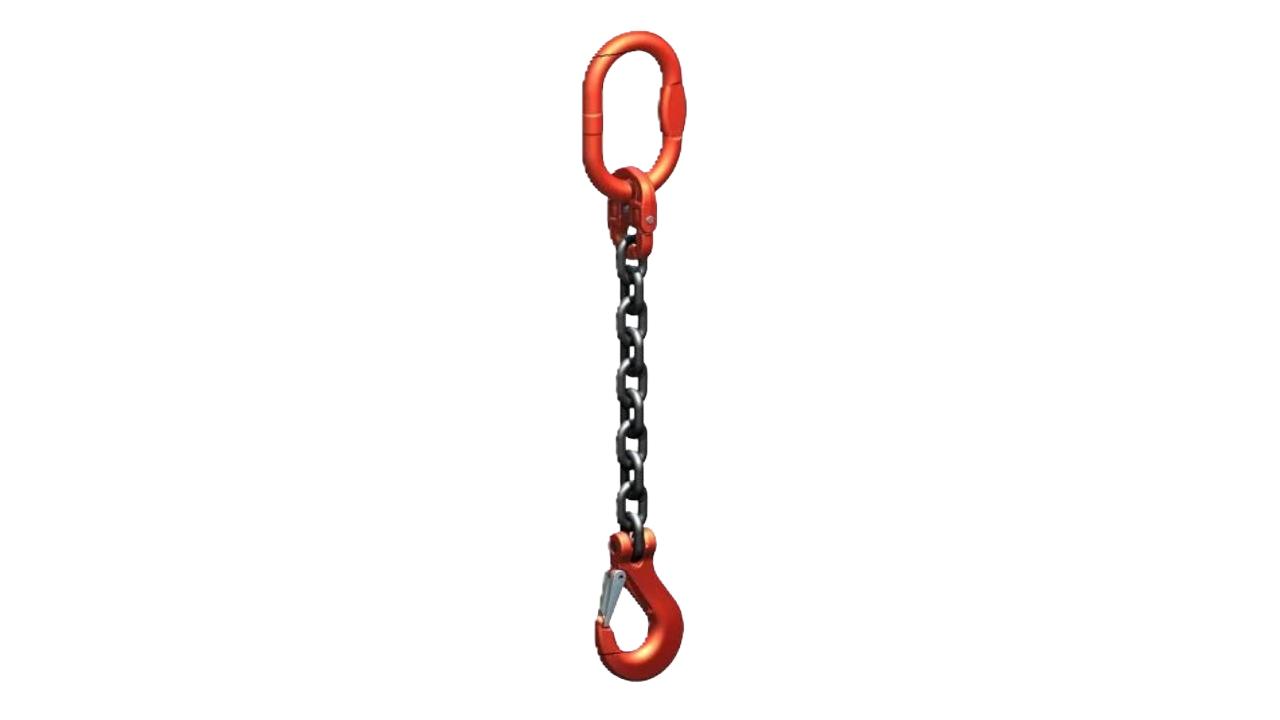

Single Leg Grade 80 Chain Sling | Fully Certified | 1.5t – 8t WLL

Description

This Single Leg Grade 80 Chain Sling is a professional-grade lifting solution designed for maximum safety and durability in demanding industrial environments. As a leading supplier of G80 lifting equipment, we ensure every Single Leg Chain Sling we assemble meets rigorous safety standards, providing you with a reliable tool for overhead lifting, construction, and engineering applications.

Built for Strength. Engineered for Safety. Our Single Leg Grade 80 (G80) Chain Slings are the industry standard for rugged, overhead lifting. Manufactured from high-tenacity alloy steel, these slings offer a superior strength-to-weight ratio compared to standard steel chains, making them easier to handle without sacrificing load capacity.

Key Features:

• Premium Grade 80 Alloy Steel: Heat-treated for maximum durability and resistance to abrasion and wear.

• Fully Customisable: Available in diameters from 7mm to 16mm and lengths ranging from 1m to 10m to suit your specific reach requirements.

• Multiple Hook Options: Choose between standard Sling Hooks with Safety Catches, Self-Locking Hooks for maximum security, or C-Hooks for specialized foundry work.

• Optional Integrated Shortener: Effortlessly adjust the length of your sling to accommodate varying load heights.

• Fully Certified: Every sling is supplied with a certificate of conformity and is fitted with a heavy-duty metal ID tag showing the Working Load Limit (WLL) and unique serial number.

Technical Specifications:

• Safety Factor: 4:1

• Finish: Black lacquer or painted finish for corrosion protection.

• Standard: Manufactured in accordance with EN 818-4.

Ideal For:

• Construction and Site Work

• Manufacturing and Engineering

• Foundries and Steel Mills

• Automotive and Heavy Machinery Recovery

---

Why Choose Our G80 Slings?

Unlike synthetic slings, our Grade 80 chain slings are resistant to UV damage, chemicals, and extreme temperatures, making them the most reliable choice for harsh outdoor or industrial environments. Whether you are performing a straight vertical lift or a complex rigged manoeuvre, our single-leg slings provide the stability and peace of mind your team needs.

Order your custom configuration today and ensure your lifting operations are safe, compliant, and efficient.

Technical Specifications & Load Limits

Our Grade 80 alloy steel chains offer an exceptional strength-to-weight ratio. Below are the Working Load Limits (WLL) for our Single Leg Grade 80 Chain Sling range:

• 7mm: 1.5 Ton WLL

• 8mm: 2.0 Ton WLL

• 10mm: 3.15 Ton WLL

• 13mm: 5.3 Ton WLL

• 16mm: 8.0 Ton WLL

What does Grade 80 (G80) mean? Grade 80 is a high-strength heat-treated alloy steel specifically designed for overhead lifting. It provides a higher load capacity than standard steel chain while remaining resistant to abrasion and heavy wear.

Is this sling supplied with a certificate? Yes. Every Single Leg Grade 80 Chain Sling purchased from JCD Cranes is supplied with a fully traceable Certificate of Conformity and is fitted with a mandatory metal ID tag.

Can I adjust the length of the chain? By selecting the “Integrated Shortener” option, you can easily adjust the reach of your sling to accommodate different load sizes without needing additional equipment.



Chain Diam. / mm	Working Load Limit / Tonnes
Configuration:	Straight Lift	2 Leg Sling		3 Leg Sling		4 Leg Sling
	Angle to Vertical:	0°	a = 0° to 45°	a = 45° to 60°	a = 0° to 45°	a = 45° to 60°	a = 0° to 45°
Factor:	1.0	1.4	1.0	2.1	1.5	2.1	1.5
7	1.50	2.12	1.50	3.15	2.24	3.15	2.24
8	2.00	2.80	2.00	4.25	3.00	4.25	3.00
10	3.15	4.25	3.15	6.70	4.75	6.70	4.75
13	5.30	7.50	5.30	11.20	8.00	11.20	8.00
16	8.00	11.20	8.00	17.00	11.80	17.00	11.80
20	12.50	17.50	12.50	26.50	19.00	26.50	19.00
22	15.00	21.20	15.00	31.50	22.40	31.50	22.40
26	21.20	30.00	21.20	45.00	31.50	45.00	31.50
32	31.50	45.00	31.50	67.00	47.50	67.00	47.50
