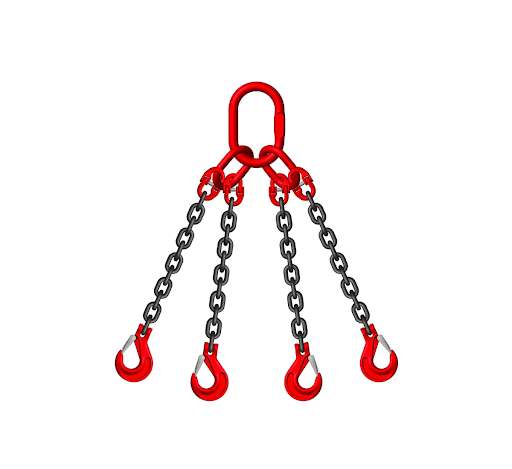

Our Quadruple Leg (4-Leg) Grade 80 (G80) Alloy Steel Chain Slings are engineered for professional heavy-duty lifting applications where supreme balance, load distribution, and stability are critical. Manufactured from high-tenacity alloy steel and fully compliant with EN 818-4 standards, these multi-leg slings provide a robust solution for complex overhead lifting, construction rigging, and heavy industrial engineering.
Every assembly is custom-built to your exact site requirements in the UK, including adjustable reach configurations and a comprehensive choice of specialized terminal fittings to suit your specific lift.
Key Features:
-
Heavy-Duty G80 Steel: Constructed from premium Grade 80 heat-treated alloy steel for a superior strength-to-weight ratio, maximum abrasion resistance, and long-term industrial durability.
-
Fully Certified: Assembled to order and supplied with a mandatory metal ID tag featuring a unique serial number, Working Load Limit (WLL), and a Certificate of Conformity for full site compliance.
-
Custom Configurations: Available in chain diameters from 7mm up to 16mm and effective working lengths up to 10 Metres to cover standard and heavy-capacity spans.
-

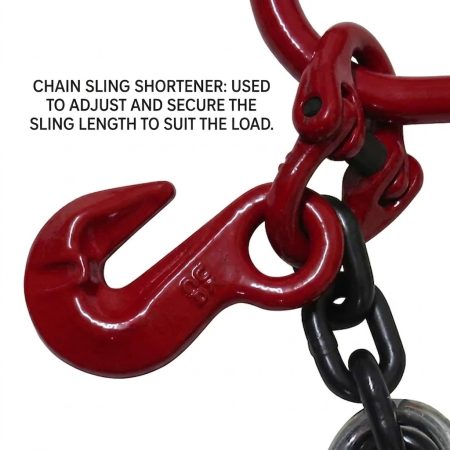

Optional Shorteners: Choose to include integrated shortening clutches to allow for precise manual adjustment of all four leg lengths—essential for keeping unbalanced or irregular loads completely level.
-
Safety Factor: 4:1 safety ratio in strict accordance with international lifting safety standards.
Working Load Limits (WLL)
The capacities below represent the maximum safe operating load for a 4-leg configuration at standard multi-leg lifting angles:
| Chain Diameter (mm) | 0° – 45° (Factor 2.1) | 45° – 60° (Factor 1.5) |
| 7mm | 3.15 Tonnes | 2.24 Tonnes |
| 8mm | 4.25 Tonnes | 3.00 Tonnes |
| 10mm | 6.70 Tonnes | 4.75 Tonnes |
| 13mm | 11.20 Tonnes | 8.00 Tonnes |
| 16mm | 17.00 Tonnes | 11.80 Tonnes |
Master Grade 80 Lifting Reference Chart
|
Chain Diam. / mm
|
Working Load Limit / Tonnes
|
||||||
| Configuration: | Straight Lift | 2 Leg Sling | 3 Leg Sling | 4 Leg Sling | |||
| Angle to Vertical: | 0° | a = 0° to 45° | a = 45° to 60° | a = 0° to 45° | a = 45° to 60° | a = 0° to 45° | |
|
Factor:
|
1.0
|
1.4
|
1.0
|
2.1
|
1.5
|
2.1
|
1.5
|
| 7 | 1.50 | 2.12 | 1.50 | 3.15 | 2.24 | 3.15 | 2.24 |
| 8 | 2.00 | 2.80 | 2.00 | 4.25 | 3.00 | 4.25 | 3.00 |
| 10 | 3.15 | 4.25 | 3.15 | 6.70 | 4.75 | 6.70 | 4.75 |
| 13 | 5.30 | 7.50 | 5.30 | 11.20 | 8.00 | 11.20 | 8.00 |
| 16 | 8.00 | 11.20 | 8.00 | 17.00 | 11.80 | 17.00 | 11.80 |
| 20 | 12.50 | 17.50 | 12.50 | 26.50 | 19.00 | 26.50 | 19.00 |
| 22 | 15.00 | 21.20 | 15.00 | 31.50 | 22.40 | 31.50 | 22.40 |
| 26 | 21.20 | 30.00 | 21.20 | 45.00 | 31.50 | 45.00 | 31.50 |
| 32 | 31.50 | 45.00 | 31.50 | 67.00 | 47.50 | 67.00 | 47.50 |
